One of the most important—yet sometimes disregarded—aspects of construction and house design is fire safety. It is both morally and legally required to make sure your building satisfies fire safety regulations, whether you are managing a business space, remodelling a residence, or installing new doors. The intumescent strip, a tiny but crucial component that can save lives in the event of a fire, is one of the most important parts in accomplishing this protection.
Everything you need to know about intumescent strips will be covered in detail in this book, including how they operate, their importance, and how to install and maintain them correctly. This article will provide you with a thorough grasp of how intumescent strips contribute to contemporary fire safety systems in the UK, regardless of whether you're a homeowner, builder, or designer.
What Are Intumescent Strips?

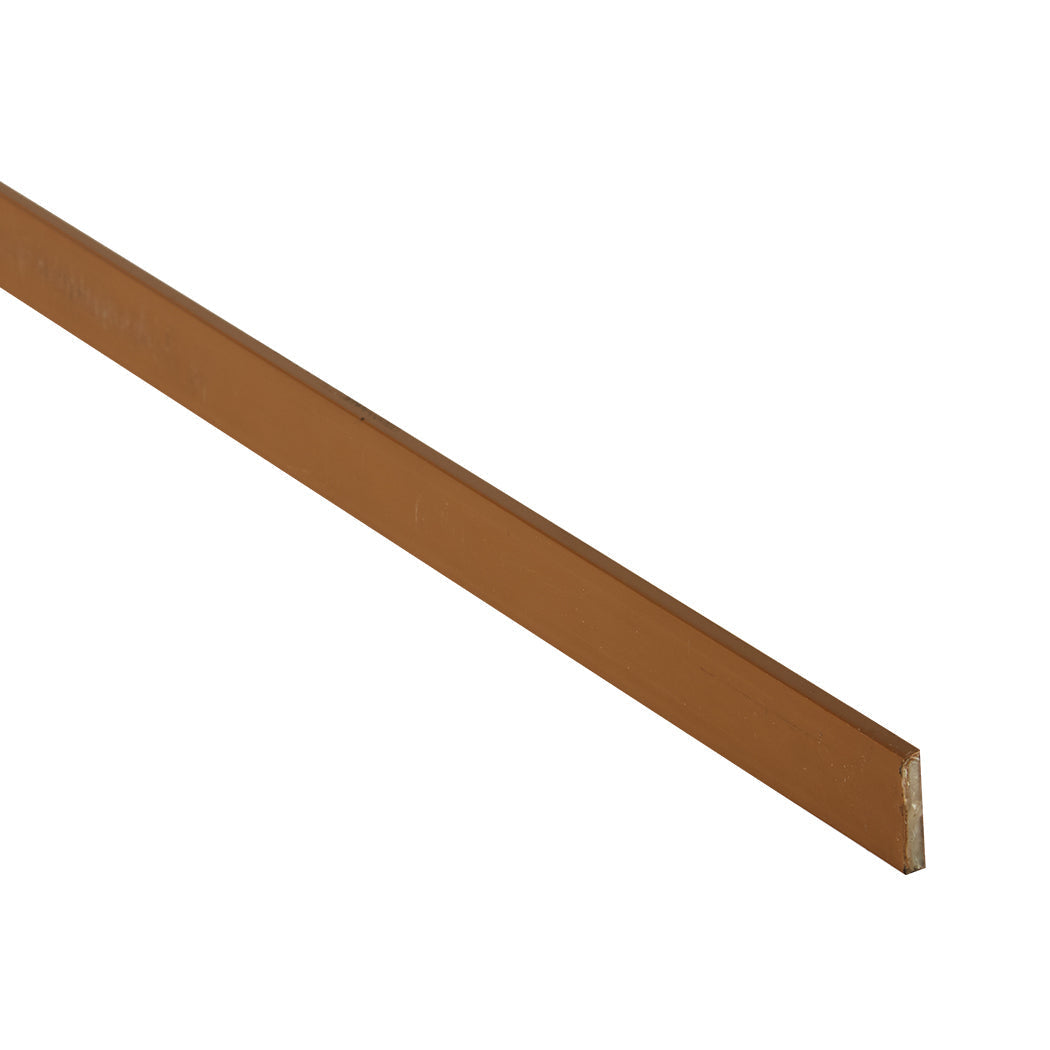

A fire-resistant substance called an intumescent strip is put around the margins of glass systems, fire doors, and frames. Sealing gaps that form between a door and its frame when exposed to high temperatures during a fire is its straightforward but essential function.
Intumescent strips are passive and undetectable at room temperature. But when the material is heated (usually between 200°C and 250°C), it expands quickly, creating a thick, heat-resistant barrier that stops smoke, flames, and harmful gases from passing through.
The majority of intumescent strips are made to expand up to 20 times their initial size, bridging any gaps that may otherwise let smoke and fire spread swiftly.
Common Materials Used
Intumescent strips are made from special compounds such as:
- Graphite – Expands when heated, forming a carbonaceous char that insulates and seals gaps.
- Sodium silicate – A water-glass-based material that expands significantly at high temperatures.
- Monoammonium phosphate – Often used for rapid expansion in specific applications.
Each material type offers different expansion rates and temperature sensitivities, making them suitable for various fire door ratings and designs.
How Intumescent Strips Work
Imagine what occurs when a fire starts to get a sense of how these strips work. Materials expand in response to heat, air pressure shifts, and smoke starts to pass through even the smallest gaps. Within minutes, heated gases and flames might pass through the spaces between the leaf and frame of a typical door.
However, with intumescent seals, the moment the temperature rises:
-
The intumescent material reacts chemically to the heat.
-
It expands rapidly, forming a thick, foam-like barrier.
-
This barrier fills the door’s perimeter gaps, preventing flames and smoke from entering adjacent areas.
-
The seal maintains its integrity for a specific fire-resistance duration — often 30, 60, 90, or 120 minutes, depending on the door rating.
This simple but effective mechanism helps contain fires within compartments, giving occupants valuable time to escape and firefighters time to respond.
Types of Intumescent Strips
In the UK, a variety of intumescent strip varieties are utilised in commercial, industrial, and residential environments. Depending on the type of door, the setting, and the fire safety regulations, each has a distinct function.
1. Plain Intumescent Strips
These are the simplest type, made only to withstand fire. In order to seal the perimeter during a fire, they are usually placed into grooves in the door or frame.
2. Combined Fire and Smoke Seals
A brush or rubber blade is included into the intumescent substance of these strips. By preventing cold smoke from leaking through before the temperature rises to a point where the intumescent layer is activated, this feature helps guard against fire and smoke.
3. Rebated and Surface-Mounted Strips
Strips can be surface-mounted with adhesive backing or rebated, or fitted into a slot, depending on the form of the door. Surface-mounted seals are simpler to adapt, but rebated seals provide a cleaner appearance.
4. Glazing Intumescent Seals
Used in fire-rated glass doors and screens, these seals ensure that glass panels remain firmly in place and resist cracking or falling out during a fire.
5. Acoustic Intumescent Seals
Some intumescent strips are designed to provide sound insulation as well, ideal for multi-purpose doors in offices, hospitals, or luxury homes.
Why Intumescent Strips Are Important
1. They Save Lives
In a fire, every second counts. Intumescent strips help contain fire and smoke, slowing their spread. This containment buys time for evacuation and limits damage.
2. Legal and Building Regulation Compliance
The UK Building Regulations (Approved Document B) require the use of intumescent seals and fire doors in specific locations, such as stairwells, common hallways and the spaces between garages and residential rooms.
Failing to install the correct fire protection measures can result in non-compliance penalties, increased insurance premiums, or even legal consequences.
3. Protects Property and Investments
By containing fires to specific areas, intumescent strips help reduce structural damage and prevent total loss, which is crucial for businesses and homeowners alike.
4. Enhances Door Performance
In addition to increasing airtightness, energy efficiency, and sound insulation, contemporary fire doors with intumescent seals also promote sustainability and general comfort.
Fire Ratings and Regulations in the UK
Fire doors and their associated seals must comply with British Standards such as:
- BS 476-22 – Fire tests on building materials and structures.
- BS EN 1634-1 – Fire resistance testing for door and shutter assemblies.
- BS 8214:2016 – Code of practice for timber-based fire door assemblies.
Depending on the building type and layout, doors are rated for FD30, FD60, FD90, or FD120 minutes of fire resistance.
For instance:
- FD30 doors (30 minutes) are commonly used in homes.
- FD60 doors (60 minutes) are used in commercial or high-risk areas like plant rooms or stairwells.
Each rating requires intumescent seals that meet specific test standards and installation guidelines.
Installation of Intumescent Strips
1. Location
Generally, the top and vertical edges of the door leaf or door frame are where the strips are placed. They can also be installed at the meeting stiles of double doors.
2. Preparation
Before installation:
- Ensure grooves are clean, dry, and free from dust.
- Measure accurately — improper fitting reduces performance.
- Use a router or saw to create the correct groove depth and width.
3. Fitting
- Peel the adhesive backing and press the strip firmly into the groove.
- Check for continuous contact — no gaps or overlaps.
- For surface-mounted versions, align and secure using recommended fixings.
4. Finishing Touches
After installation, ensure the door closes smoothly. There should be no resistance, as this could affect fire door performance.
Maintenance and Inspection
Fire doors — and their intumescent seals — must be regularly inspected to remain effective.
Key Maintenance Tips:
- Inspect every six months (more frequently in commercial buildings).
- Check for peeling, cracking, or gaps in the strip.
- Replace damaged seals immediately with the same rated specification.
- Ensure no paint or varnish covers the strip, as this can prevent expansion.
- Test door alignment to confirm even pressure on all sides.
Fire doors should also bear certification labels, verifying compliance with UK standards.
Common Mistakes to Avoid
-
Painting Over Seals – Paint can block expansion, rendering the strip useless.
-
Using the Wrong Size or Type – Always match the strip to the door’s fire rating.
-
Incorrect Placement – Misalignment leaves unprotected gaps.
-
Neglecting Maintenance – Even the best seals degrade over time.
-
Mixing Brands or Ratings – Use tested combinations to ensure compliance.
Modern Innovations in Intumescent Technology
With the growing emphasis on sustainability and aesthetics, manufacturers are developing improved seal designs that integrate seamlessly into modern interiors.
1. Slimline and Colour-Matched Seals
Modern seals come in a variety of colours and finishes to match door frames, offering a subtle look without compromising performance.
2. Eco-Friendly Materials
Some brands use recycled components or low-toxicity formulations to support eco-conscious building standards.
3. Dual-Function Seals
Innovative models combine fire, smoke, acoustic, and thermal insulation in one strip, ideal for multi-purpose environments.
Cost Considerations
The cost of intumescent strips in the UK depends on type, brand, and rating:
- Standard strips: £2–£5 per metre.
- Combined smoke & fire seals: £4–£10 per metre.
- Glazing seals: £6–£12 per metre.
Though affordable, they offer significant protection relative to cost — a small investment that can prevent catastrophic losses.
Where to Buy Intumescent Strips in the UK
You can purchase quality intumescent strips from reputable door and fire safety suppliers such as:
- Door Supplies Online
- JB Kind Doors
- FireSealsDirect.co.uk
- IronmongeryDirect
- Toolstation
- Screwfix
- Door Superstore
- Firestop Centre UK
Always verify that the products carry BS or CE certification marks before installation.
Frequently Asked Questions (FAQs)
1. Are intumescent strips mandatory in all doors?
No. They are only required in fire-rated doors as per building regulations.
2. Can I install intumescent seals myself?
Yes, but only if you follow manufacturer instructions carefully. For commercial properties, professional installation is strongly advised.
3. How often should I replace them?
Typically every 5–10 years, depending on usage and environmental exposure.
4. Do I need smoke seals as well?
If your building requires FD30S or higher fire doors, smoke seals are mandatory.
5. Can I retrofit intumescent strips to existing doors?
Yes, as long as the door construction supports fire resistance and meets testing standards.
Conclusion
Despite their diminutive size, intumescent strips play a crucial part in fire protection. They serve as a vital line of defence, keeping fires under control, stopping the spread of smoke, and protecting people and property.
You may greatly improve your building's fire protection performance by realising their significance, making sure they are installed correctly, and performing routine maintenance.
Whether you're an architect, contractor, or homeowner, adding certified intumescent seals to your fire doors is a proactive way to make your space more robust, safer, and compliant.
