Concealed Hinge Types: A Guide to Choosing and Fitting Hidden Door Hinges
Concealed hinge types are designed to sit largely or completely inside the door and frame when the door is closed. Unlike traditional butt hinges, which remain visible on the edge of the door, concealed hinges create a cleaner appearance and can be particularly useful for modern, minimalist and flush door designs.
Choosing the right concealed hinge is about more than appearance. Different concealed door hinges are designed for different door weights, opening angles, adjustment requirements and installation methods.
Some concealed hinges are compact and suitable for lightweight internal doors, while others are engineered for heavier doors and provide multi-directional adjustment. The correct choice depends on the door construction, frame, required opening angle and the installation method available.
This guide explains the main types of concealed hinges, how they compare and what to consider when choosing hidden hinges for internal doors, heavy doors, flush doors and contemporary installations.

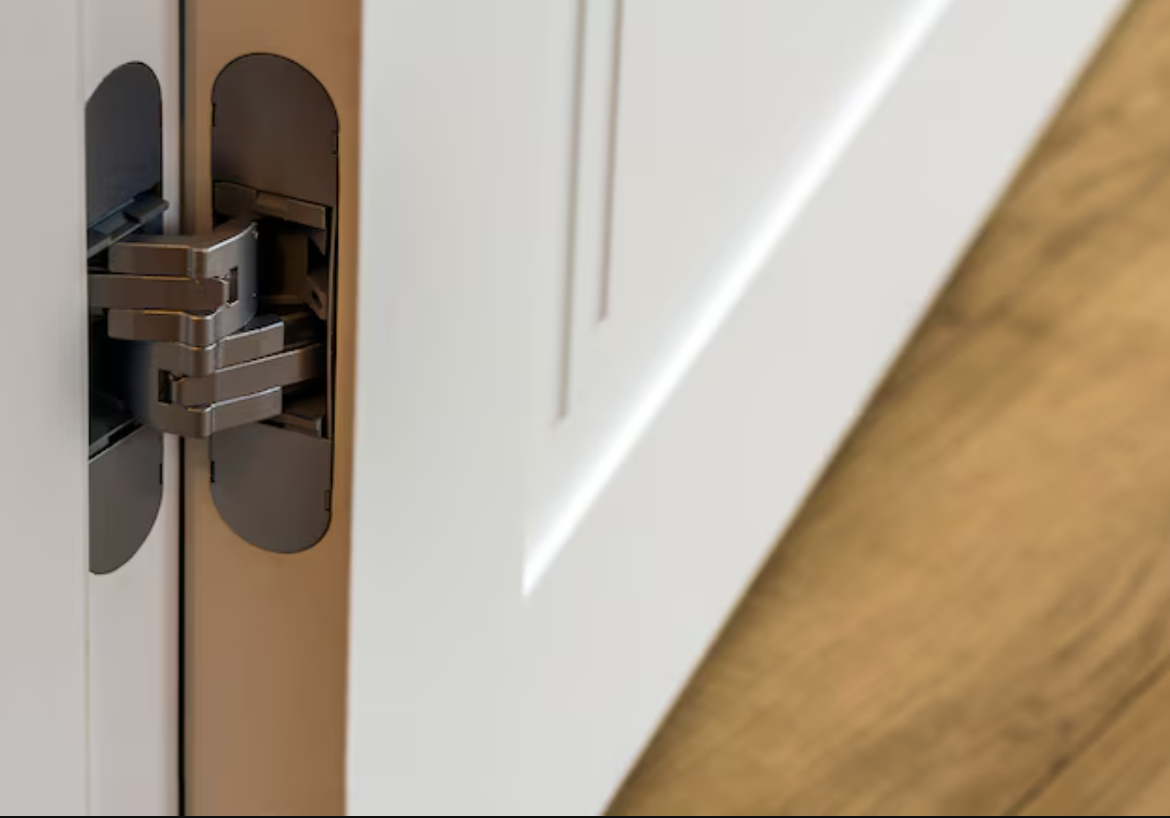

What Are Concealed Hinges?
A concealed hinge is a door hinge designed so that the main hinge mechanism is hidden when the door is closed.
Depending on the design, the hinge may be installed inside:
- The door leaf
- The door frame
- Both the door and frame
- A routed or machined recess
When the door is closed, little or none of the hinge is visible.
Concealed hinges are also known as hidden door hinges, invisible hinges or secret hinges, although the exact construction varies between products.
They are commonly used where a clean door appearance is required.
Why Use Concealed Door Hinges?
The main advantage of concealed hinges is their appearance.
With conventional butt hinges, the hinge leaves and knuckles remain visible. Concealed hinges hide the operating mechanism inside the door and frame.
Other potential advantages include:
- Clean minimalist appearance
- Suitable for flush doors
- Modern architectural styling
- Adjustable designs available
- Suitable options for different door weights
- Reduced visible hardware
- Potential for precise door alignment
However, concealed hinges are not automatically suitable for every door.
The door construction, weight, frame design and required opening angle must all be considered.
Main Concealed Hinge Types
There are several concealed hinge types, each designed for a particular application.
The main designs include:
- Fully concealed hinges
- Adjustable concealed hinges
- 3D adjustable concealed hinges
- Heavy-duty concealed hinges
- Compact concealed hinges
- Concealed hinges for flush doors
- Pivot-style concealed hinges
The terminology used by manufacturers can vary, so always check the individual hinge specification rather than relying on the product name alone.
1. Fully Concealed Hinges
Fully concealed hinges are designed to disappear from view when the door is closed.
They are commonly used for:
- Modern internal doors
- Flush doors
- Contemporary homes
- Minimalist interiors
- Architectural door systems
The hinge is typically recessed into the door and frame.
The main attraction is the clean appearance, but accurate routing or machining is usually required.
Advantages
- Almost completely hidden
- Clean appearance
- Suitable for modern doors
- Can provide precise alignment
Considerations
- Accurate installation required
- Routing may be necessary
- Hinge capacity must match door weight
- Frame and door construction must be suitable
2. Adjustable Concealed Hinges
Adjustable concealed hinges allow the position of the door to be fine-tuned after installation.
This can be particularly useful because timber doors can move slightly due to changes in moisture and temperature.
Depending on the hinge design, adjustment may allow the door to be moved:
- Vertically
- Horizontally
- Towards or away from the frame
Adjustability can make installation and future door alignment easier.
3. 3D Adjustable Concealed Hinges
3D concealed hinges provide adjustment in three directions.
These are commonly referred to as 3D adjustable hinges.
The three adjustment directions generally allow the installer to fine-tune:
- Height
- Side-to-side position
- Compression or depth
This can be particularly useful for modern doors where small gaps around the door need to be accurately controlled.
When Are 3D Concealed Hinges Useful?
They can be suitable for:
- Flush internal doors
- Contemporary doors
- Heavy internal doors
- Doors requiring precise alignment
- Projects where future adjustment may be useful
A 3D hinge does not automatically mean it is suitable for a heavy door. Always check the manufacturer's weight rating.
4. Heavy-Duty Concealed Hinges
Heavy-duty concealed hinges are designed for larger or heavier doors.
They are useful where a standard compact hinge would not provide sufficient load capacity.
Potential applications include:
- Solid timber doors
- Large internal doors
- Oversized doors
- Heavy flush doors
- Commercial applications
Door weight is one of the most important selection criteria.
Never select a hinge simply because it physically fits the door. Check the manufacturer's stated load capacity and recommended number of hinges.
5. Compact Concealed Hinges
Compact concealed hinges are smaller designs intended for applications where space inside the door or frame is limited.
They can be suitable for lighter doors and furniture-style applications, depending on the manufacturer's specification.
Their smaller size can make them easier to conceal, but compact does not necessarily mean suitable for every lightweight door.
Check:
- Maximum door weight
- Door thickness
- Minimum installation depth
- Number of hinges required
- Opening angle
6. Concealed Hinges for Flush Doors
Flush doors are one of the most common applications for concealed hinges.
A flush door is designed to sit neatly within or alongside the frame without traditional projecting door stops or visible hinge leaves.
Concealed hinges help maintain this minimalist appearance.
For a flush door installation, check the complete system rather than selecting the hinge separately. The door thickness, frame construction and hinge recess dimensions all need to work together.
7. Pivot-Style Concealed Hinges
Pivot systems support the door from pivot points rather than using a conventional hinge knuckle.
Depending on the design, pivot hardware can be concealed within the top and bottom of the door and frame.
Pivot systems are often used for:
- Large doors
- Architectural doors
- Pivot doors
- Contemporary entrances
- Doors where a distinctive opening action is required
They require careful installation because the pivot points and door alignment need to be accurately positioned.
Concealed Hinge Comparison
The following comparison provides a starting point for understanding the main types of concealed hinges.
| Concealed hinge type | Typical application | Main advantage | Key consideration |
|---|---|---|---|
| Fully concealed | Modern internal doors | Minimal visible hardware | Accurate installation |
| Adjustable concealed | Internal doors | Easier alignment | Check adjustment range |
| 3D adjustable | Flush and contemporary doors | Multi-directional adjustment | Higher installation precision |
| Heavy-duty concealed | Heavy timber doors | Greater load capacity | Door weight |
| Compact concealed | Lightweight doors | Small installation footprint | Lower capacity may apply |
| Flush-door concealed | Flush internal doors | Clean appearance | Door/frame compatibility |
| Pivot concealed | Large or architectural doors | Alternative opening system | Accurate pivot positioning |
How to Choose Concealed Hinges
Choosing the right concealed door hinges involves more than selecting a finish or size.
Consider the following factors before ordering.
1. Door Weight
Door weight should be one of the first things you check.
A solid oak door can be considerably heavier than a lightweight hollow-core or engineered door.
The hinge manufacturer's load rating should be checked against the complete door weight.
Also consider:
- Door height
- Door width
- Door thickness
- Construction
- Glazing
- Hardware
- Number of hinges
Do not assume that adding more hinges automatically makes an unsuitable hinge appropriate. Follow the manufacturer's recommended configuration.
2. Door Thickness
The thickness of the door determines how much material is available for the hinge recess.
A concealed hinge may require a specific minimum door thickness.
Before purchasing, check:
- Minimum door thickness
- Maximum door thickness
- Required routing depth
- Hinge cup or body dimensions
- Fixing requirements
This is particularly important for thin flush doors.
3. Opening Angle
Different concealed hinges allow different maximum opening angles.
Some are intended for relatively limited opening movement, while others can provide wider opening angles.
Consider how the door will be used.
For example:
- Bedroom doors may only require a conventional opening angle.
- Utility doors may benefit from wider access.
- Large internal doors may need a greater opening range.
- Doors positioned near walls may require careful hinge selection to avoid clashes.
Never assume that every concealed hinge allows the same opening angle.
4. Adjustability
Adjustability can make a significant difference during installation.
A fixed concealed hinge may provide fewer options for correcting alignment.
An adjustable or 3D hinge can allow the installer to fine-tune the door after installation.
This can be useful if:
- The frame is not perfectly square
- The door needs fine adjustment
- The door settles over time
- Consistent gaps are important
- The installation has tight tolerances
Check exactly what adjustment the hinge provides. "Adjustable" does not always mean adjustment in every direction.
5. Installation Style
The installation method is another major consideration.
Some concealed hinges are designed to be:
- Routed into the door
- Routed into the frame
- Surface-mounted within a concealed housing
- Installed into pre-machined recesses
- Installed as part of a complete door system
For a DIY installation, a hinge requiring specialist routing may involve more preparation than a surface-mounted or pre-machined solution.
If the door has already been manufactured with concealed hinge recesses, choose a hinge that matches those dimensions.
6. Door and Frame Construction
The material surrounding the hinge needs to provide sufficient strength for the fixing method.
Consider whether the door is:
- Solid timber
- Engineered timber
- Veneered
- Composite
- Metal
- A specialist flush construction
The frame material is equally important.
Always check the hinge manufacturer's installation requirements.
How Many Concealed Hinges Does a Door Need?
The number of hinges depends on the door's weight, height, construction and hinge manufacturer's recommendations.
A typical internal door may use two or three hinges, while heavier or taller doors may require additional support.
Do not select the number of hinges based solely on appearance.
Check:
- Door weight
- Door height
- Hinge load capacity
- Manufacturer recommendations
- Door construction
- Frequency of use
The hinge manufacturer's stated capacity should take priority.
Concealed Hinges vs Butt Hinges
The main difference between concealed and traditional butt hinges is visibility.
| Feature | Concealed hinge | Butt hinge |
|---|---|---|
| Visibility | Mostly hidden | Visible |
| Appearance | Minimalist | Traditional |
| Installation | Often more complex | Generally straightforward |
| Adjustment | Many designs offer adjustment | Usually limited |
| Flush doors | Particularly suitable | Less discreet |
| Traditional doors | Can work | Common choice |
| Routing | Often required | Usually simpler |
Concealed hinges are particularly attractive where the visual appearance of the door is important.
Butt hinges remain a practical choice where straightforward installation and traditional styling are preferred.
Concealed Hinges for Internal Doors
Concealed hinges are commonly used on modern internal doors where a clean appearance is required.
They can work particularly well with:
- Flush doors
- Contemporary oak doors
- Painted doors
- Minimalist interiors
- Full-height doors
- Modern room divider doors
When selecting concealed hinges for an internal door, focus on weight, thickness, opening angle and adjustment.
For heavier doors, pay particular attention to the hinge load rating.
Concealed Hinges for Heavy Doors
Heavy doors need hinges designed to support their weight over repeated use.
A heavy concealed hinge should be selected according to the manufacturer's load capacity rather than simply its physical size.
Large solid timber doors, glazed doors and oversized doors may all require specialist hinge systems.
If the door is unusually heavy or large, consider whether a conventional concealed hinge or a pivot system is more appropriate.
Concealed Hinges for Fire Doors
Fire doors require additional care when choosing hinges.
A fire door is tested as part of a complete door assembly. The hinges must therefore be suitable for the particular door specification.
Do not replace fire door hinges with ordinary concealed hinges simply because they fit physically.
Check:
- Fire performance requirements
- Manufacturer certification
- Hinge type
- Hinge size
- Load capacity
- Number of hinges
- Fixing requirements
- Door and frame compatibility
Always follow the door manufacturer's instructions and the requirements of the relevant tested door assembly.
Installing Concealed Hinges
The exact installation process varies considerably between hinge designs.
A typical installation may involve:
- Marking the hinge positions.
- Measuring the required recess.
- Routing or machining the door.
- Preparing the frame.
- Installing the hinge bodies.
- Securing the fixings.
- Hanging the door.
- Checking the gaps.
- Adjusting the hinge.
- Testing the opening and closing movement.
Accurate routing is particularly important because the hinge needs to sit correctly within the recess.
If the recess is too shallow, the hinge may not sit flush. If it is too deep or incorrectly positioned, the door alignment can be affected.
Common Concealed Hinge Installation Mistakes
Choosing a Hinge That Is Too Small
A compact hinge may not have sufficient load capacity for a heavy timber door.
Ignoring Door Thickness
The hinge must physically fit within the available door material.
Incorrect Hinge Position
Incorrect positioning can affect door alignment and load distribution.
Routing Too Deep
An excessively deep recess can weaken the fixing area and prevent the hinge from sitting correctly.
Failing to Check the Opening Angle
A hinge may not open as far as required for the room.
Assuming All Adjustable Hinges Are 3D Adjustable
Different products provide different adjustment ranges. Check the specification.
Using Unsuitable Hinges on Fire Doors
Fire-rated doors require compatible hardware that meets the door's tested specification.
Frequently Asked Questions
What are concealed hinges?
Concealed hinges are door hinges designed to be hidden inside the door and frame when the door is closed. They are commonly used on modern, flush and minimalist doors.
What are the main concealed hinge types?
Common types include fully concealed hinges, adjustable concealed hinges, 3D adjustable hinges, heavy-duty concealed hinges, compact concealed hinges and pivot-style concealed systems.
Are concealed hinges suitable for heavy doors?
Some are. Heavy-duty concealed hinges are specifically designed for larger or heavier doors, but the manufacturer's load rating must always be checked.
What is a 3D concealed hinge?
A 3D concealed hinge allows adjustment in three directions, typically height, side-to-side position and depth or compression. This can make precise door alignment easier.
How do I choose the right concealed hinge?
Consider the door's weight, thickness, size, required opening angle, hinge adjustment, installation method and frame construction. Also check the manufacturer's recommended application.
Are concealed hinges difficult to install?
They can require more accurate preparation than traditional butt hinges because they are often recessed into the door and frame. Some products are supplied for pre-machined doors, while others require routing.
Can concealed hinges be used on fire doors?
Only where the specific hinge is suitable for the door's tested and certified specification. Always check the manufacturer's requirements before fitting or replacing fire door hinges.
Final Thoughts on Concealed Hinge Types
Choosing between different concealed hinge types starts with the door rather than the hinge's appearance.
Consider the door's weight, thickness, opening angle, adjustability and installation style before selecting a product. Lightweight internal doors may require a compact concealed hinge, while heavier or larger doors may need a heavy-duty or adjustable system.
For modern flush doors, 3D adjustable concealed hinges can provide the combination of discreet appearance and precise alignment needed for a clean installation. Pivot systems can provide an alternative for larger architectural doors.
Most importantly, check the manufacturer's specifications for load capacity, dimensions, opening angle and installation requirements. The correct concealed hinge should provide the required support and movement while remaining compatible with the door and frame.
For concealed door hinges, hidden door hinges and door hardware, explore the available options at Door Supplies Online and choose the hinge system suited to your door's weight, construction and installation requirements.
