Oil Door Hinges: How to Lubricate, Fix Squeaks and Prevent Corrosion
If your door is squeaking, feels stiff when opening or closing, or makes a grinding noise around the hinge, it may simply need lubrication. Learning how to oil door hinges is a quick maintenance task that can improve the movement of the door and help reduce wear on the hinge components.
Door hinges are constantly under load. Every time a door opens or closes, the hinge knuckles and pin move against each other. Without adequate lubrication, friction can increase, resulting in squeaking, stiffness and accelerated wear. In areas exposed to moisture, surface corrosion can also become a problem.
This guide explains how to oil door hinges, which oils and lubricants are suitable, where to apply them, how often to lubricate hinges and what to do if a hinge is already squeaking, stiff or showing signs of corrosion.
Why Do Door Hinges Need Oil?
A door hinge contains moving metal components, including the hinge knuckles and hinge pin. As the door moves, these components rotate against each other.
Over time, dust, dirt and moisture can affect the hinge. Lubrication creates a thin film between the moving surfaces, helping them move more smoothly.
Regular hinge lubrication can help:
- Reduce squeaking
- Make stiff doors easier to operate
- Reduce friction between moving components
- Minimise premature hinge wear
- Protect suitable metal surfaces from moisture
- Extend the useful life of door hinges
Lubrication is particularly useful for frequently used internal doors, heavy doors and hinges exposed to humid or damp conditions.
How to Oil Door Hinges
The process of oiling door hinges is relatively straightforward. You do not normally need to remove the hinge from the door.
Step 1: Identify the Hinges
Open the door and inspect each hinge. Look for:
- Squeaking or grinding
- Stiff movement
- Dirt around the hinge pin
- Rust or surface corrosion
- Loose screws
- Damage to the hinge knuckles
- Signs that the hinge is bent or misaligned
If the hinge is physically damaged, lubrication may not solve the problem. A damaged or unsuitable hinge may need replacing.
Step 2: Clean the Hinge
Before applying oil, remove loose dirt and dust.
Use a dry cloth to clean around the hinge knuckles and pin. If there is heavy dirt or old lubricant, wipe it away carefully.
Avoid flooding the hinge with cleaning products or water. Excess moisture can contribute to corrosion.
Step 3: Apply a Small Amount of Lubricant
Apply a small amount of suitable oil or lubricant around the hinge pin and moving sections.
You do not need to soak the hinge. Too much oil can attract dust and leave marks on the door or frame.
Move the door backwards and forwards several times to help distribute the lubricant through the hinge.
Step 4: Wipe Away Excess
After working the door, wipe away excess oil with a clean cloth.
Pay particular attention to the hinge edges and nearby paintwork, timber and flooring. Oil can stain some surfaces.
What Oil Should You Use on Door Hinges?
Choosing the right lubricant is important. A light machine oil or suitable penetrating lubricant can work well for many conventional metal door hinges.
Common options include:
Light Machine Oil
A light machine oil can be suitable for lubricating metal hinge pins and moving components. It provides lubrication without being excessively thick.
This is a practical choice where the hinge is accessible and needs regular maintenance.
Silicone-Based Lubricant
A silicone lubricant can be useful where you want a lubricant that is less likely to leave a heavy oily residue.
Always check that the particular product is suitable for the hinge material and intended application.
PTFE Lubricant
PTFE-based lubricants are designed to reduce friction and can be useful for various mechanical applications.
Follow the manufacturer's instructions before using one on a particular hinge.
Penetrating Lubricant
A penetrating lubricant can be useful when a hinge is stiff or when the hinge pin has become difficult to move.
However, penetrating products and long-term lubricants are not necessarily the same thing. Check the product instructions to determine whether it is intended primarily for freeing components or providing ongoing lubrication.
Where Should You Oil Door Hinges?
The main area to lubricate is the moving section around the hinge pin and knuckles.
Apply a small amount where the hinge pin moves within the hinge knuckles. Avoid simply spraying the visible face of the hinge because this may not reach the actual friction point.

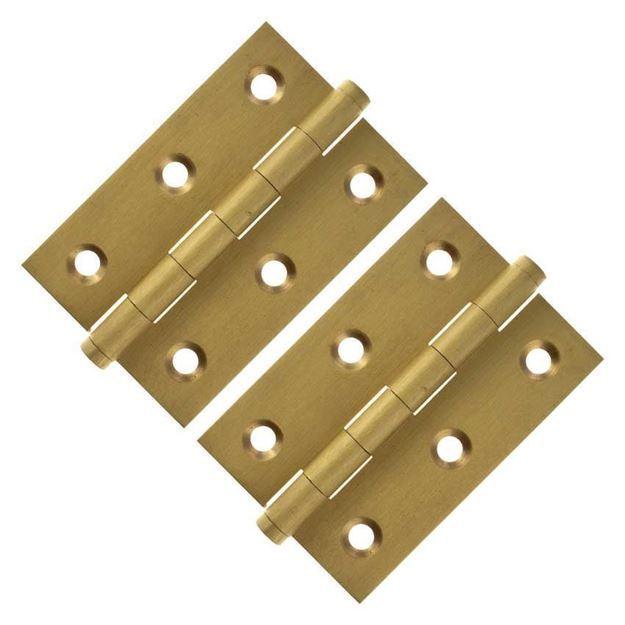

For a conventional butt hinge, concentrate on:
- The hinge pin
- The hinge knuckles
- The point where the moving sections rotate
- Any accessible contact points specified by the hinge manufacturer
Do not apply excessive lubricant to the screws, door face or frame unless the product instructions specifically recommend it.
How Often Should You Oil Door Hinges?
There is no single lubrication schedule that applies to every door.
For doors used regularly, inspecting the hinges once or twice a year is a sensible maintenance routine. Lubrication may be required when you notice squeaking, stiffness or increased friction.
Doors in demanding environments may require more frequent attention. This can include:
- External doors
- Garage doors
- Utility rooms
- Coastal properties
- Damp areas
- High-traffic commercial doors
- Doors exposed to moisture
Rather than applying oil excessively, inspect the hinge and lubricate it when necessary.
How to Stop a Door Hinge Squeaking
A squeaking door hinge is one of the most common reasons people search for how to oil door hinges.
The noise is often caused by friction between the moving metal components.
To deal with a squeaking hinge:
- Open the door and identify which hinge is making the noise.
- Clean away visible dust and dirt.
- Apply a small amount of suitable lubricant around the hinge pin.
- Open and close the door several times.
- Wipe away excess lubricant.
- Check the hinge again after operating the door.
If the squeak remains, inspect the hinge for corrosion, damage or misalignment.
A squeak can sometimes indicate that the hinge itself is worn rather than simply dry.
How to Fix Stiff Door Hinges
If a door is difficult to open or close, do not immediately assume that the hinges need oil.
First check whether the door is rubbing against the frame, floor or threshold.
If the door moves freely but the hinges themselves feel stiff:
- Clean the hinge
- Apply a suitable lubricant
- Operate the door several times
- Check the hinge pin
- Inspect the hinge screws
- Look for corrosion or physical damage
Loose screws can also affect door alignment. Tighten suitable fixings where necessary, taking care not to overtighten them and damage the timber.
If lubrication does not improve the movement, the hinge may be worn, bent or incorrectly specified for the door.
How to Deal With Surface Corrosion on Door Hinges
Surface corrosion can develop when metal hinges are exposed to moisture and oxygen.
Early surface corrosion may appear as small brown, orange or dull areas on the hinge.
For light surface corrosion:
- Clean the hinge carefully.
- Remove loose surface rust with an appropriate fine abrasive or cleaning method.
- Wipe away residue.
- Allow the hinge to dry completely.
- Apply a suitable protective lubricant if appropriate for the hinge finish.
Do not aggressively sand or abrade decorative hinge finishes because this can permanently damage the surface.
If corrosion has caused pitting, weakened the hinge or affected its movement, replacement may be more appropriate than continued lubrication.
Can You Use WD-40 on Door Hinges?
A penetrating spray can be useful for freeing a stiff hinge, displacing moisture or helping loosen components.
However, check the product's intended use before treating it as a long-term hinge lubricant. Some products are better suited to penetrating, cleaning or water displacement than ongoing lubrication.
For regular maintenance, use a lubricant specifically appropriate for the hinge and follow the manufacturer's instructions.
Should You Remove the Hinge Pin to Oil It?
You do not normally need to remove the hinge pin for routine lubrication.
Applying lubricant to the accessible moving area and operating the door can be sufficient for many standard hinges.
Removing a hinge pin can also affect the door's stability while the pin is out. If you do remove it, support the door appropriately and follow the hinge manufacturer's guidance.
For heavy, fire-rated or specialist doors, avoid removing components unless the manufacturer's fitting and maintenance instructions allow it.
When Should You Replace a Door Hinge?
Lubrication cannot repair every hinge problem.
Consider replacing the hinge if it has:
- Significant corrosion
- Cracked or damaged leaves
- A bent hinge pin
- Excessive play
- Damaged knuckles
- Broken fixings
- Persistent stiffness after lubrication
- Visible deformation
- Incorrect load capacity for the door
A replacement hinge should be compatible with the door's weight, thickness, frame and existing hinge arrangement.
When replacing a hinge, check its size, type, thickness, screw-hole configuration and load rating before purchasing.
Replacing Door Hinges
If lubrication does not resolve the problem, replacing the hinge may be the next step.
Start by measuring the existing hinge, including:
- Overall height
- Width
- Thickness
- Screw-hole positions
- Hinge type
- Finish
- Door weight requirements
Check whether the existing hinge recess can be reused. A replacement hinge with the same dimensions and thickness may fit the existing recess, provided the timber and fixing points are sound.
Remove the old hinge carefully and inspect the door and frame before installing the replacement.
Once the new hinges are installed, check that the door opens and closes smoothly and that the gaps around the door are consistent.
How Many Hinges Does a Door Need?
The number of hinges required depends on the door's size, weight, construction and manufacturer recommendations.
Many standard internal doors use three hinges, while heavier or taller doors may require additional support.
Do not simply add more hinges to compensate for hinges that are unsuitable for the door. The hinges themselves need to have an appropriate load capacity and installation arrangement.
For fire doors and specialist doors, follow the tested door assembly and manufacturer's requirements.
Oil Door Hinges on Fire Doors
Fire doors require particular care because the hinges form part of the complete door assembly.
Only use hinges and other hardware that are suitable for the specific fire door and comply with the manufacturer's requirements.
Do not replace fire door hinges with ordinary hinges simply because they appear to be the same size.
If maintenance is required, check the door manufacturer's instructions before using lubricants or removing hinge components.
Common Door Hinge Problems
| Problem | Possible cause | Practical solution |
|---|---|---|
| Squeaking | Dry hinge or friction | Clean and lubricate |
| Stiff movement | Lack of lubrication, corrosion or alignment issue | Lubricate and inspect |
| Grinding noise | Dirt, corrosion or damaged hinge | Clean and inspect, replace if necessary |
| Door rubbing | Misalignment or movement | Check hinges and frame |
| Rust marks | Moisture and corrosion | Clean surface corrosion and protect |
| Loose hinge | Loose fixings | Check and tighten suitable screws |
| Persistent noise | Worn or damaged hinge | Consider replacement |
Tips for Maintaining Door Hinges
A small amount of regular maintenance can prevent minor hinge problems from becoming larger repairs.
Keep these points in mind:
- Inspect hinges periodically.
- Keep hinge areas reasonably clean.
- Use the correct lubricant.
- Avoid excessive oil.
- Wipe away excess lubricant.
- Check for early signs of corrosion.
- Check hinge screws for looseness.
- Do not ignore persistent grinding or stiffness.
- Replace damaged hinges rather than relying on lubrication.
- Follow manufacturer instructions for specialist and fire-rated doors.
FAQs About Oil Door Hinges
What is the best oil for door hinges?
A suitable light machine oil or purpose-made hinge lubricant can work well for many conventional metal door hinges. Always check compatibility with the hinge finish and manufacturer's recommendations.
How often should you oil door hinges?
Inspect frequently used hinges once or twice a year and lubricate them when they become noisy, stiff or dry. Damp or high-use environments may require more frequent maintenance.
Where do you put oil on a door hinge?
Apply a small amount around the hinge pin and knuckles where the moving components rotate. Open and close the door several times to distribute the lubricant.
Why are my door hinges squeaking after oiling?
The lubricant may not have reached the friction point, or the hinge could be dirty, corroded, misaligned or worn. Inspect the hinge if the noise continues.
Can oil fix a rusty door hinge?
Lubricant can help protect suitable metal surfaces, but it will not repair significant corrosion. Light surface corrosion can sometimes be cleaned, while heavily corroded hinges may need replacement.
Should I oil a squeaky door hinge?
Yes, lubrication is one of the first maintenance steps to try when a conventional metal door hinge squeaks. Clean the hinge first and use a suitable lubricant sparingly.
Final Thoughts
Knowing how to oil door hinges can help keep doors operating smoothly and prevent minor hinge problems from becoming more serious. Regular lubrication can reduce friction, quieten squeaks and help maintain the movement of conventional metal hinges.
The key is to use the right lubricant, apply it to the actual moving parts and avoid using excessive amounts. If a hinge remains stiff, noisy or corroded after lubrication, inspect it for damage, alignment problems or wear.
For replacement hinges and door hardware, choose components that are correctly matched to the door and its intended application. For fire-rated and specialist doors, always follow the relevant manufacturer's requirements.
