Description

- Engineered Oak door frame system for folding/sliding room dividers
- Freefold Systems include: oak veneered frame (heads, jambs, stops), floor mounted guide and all hardware except handles.

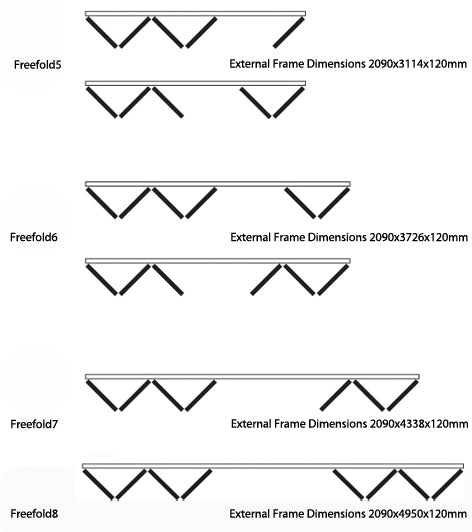

- Overall frame dimensions are shown in the images above or the table below. N.B The door jamb depth is 120mm, the head is 135mm deep.
- Frame jamb/legs and frame head are 32mm thick, whilst the central mullions are 44mm thickness - please make allowances for the thickness of the frame and gapping in your calculations
- Frame supplied unfinished
- The freefold can be installed to suit any of the configurations shown above, using any standard XL Joinery Oak doors available in a 1981x610mm size.
- Freefold system is not handed (left or right) and is therefore also available in mirrored versions of the configurations shown above
| Freefold Description | External Frame Size |
| Freefold 2 | 2090x1278x120mm |
| Freefold 3 | 2090x1890x120mm |
| Freefold 4 | 2090x2502x120mm |
| Freefold 5 | 2090x3114x120mm |
| Freefold 6 | 2090x3726x120mm |
| Freefold 7 | 2090x4338x120mm |
| Freefold 8 | 2090x4950x120mm |
